Goal

Step back from the code and map out the full data flow of the RAG pipeline built this week: documents in, answers out.

Architecture

flowchart TD
    subgraph Indexing["Indexing (run once)"]
        A[Documents<br/>5 txt files] --> B[Chunking<br/>split into text chunks]
        B --> C[Embedding<br/>nomic-embed-text to vectors]
        C --> D[Vector Store<br/>stored in Chroma]
    end

    subgraph Query["Query (every question)"]
        E[User Question] --> F[Retrieval<br/>top-k most similar chunks]
        F --> G[Prompt Building<br/>context + question merged]
        G --> H[Generation<br/>llama3:8b writes the answer]
    end

    D -.stored vectors enable retrieval.-> F

Key takeaway

Indexing and query are two independent lifecycles: indexing runs once to build the knowledge base, while query runs on every question. The vector store is the connection point between them — which is exactly why it becomes its own attack surface (next week’s poisoning experiments target this connection point).

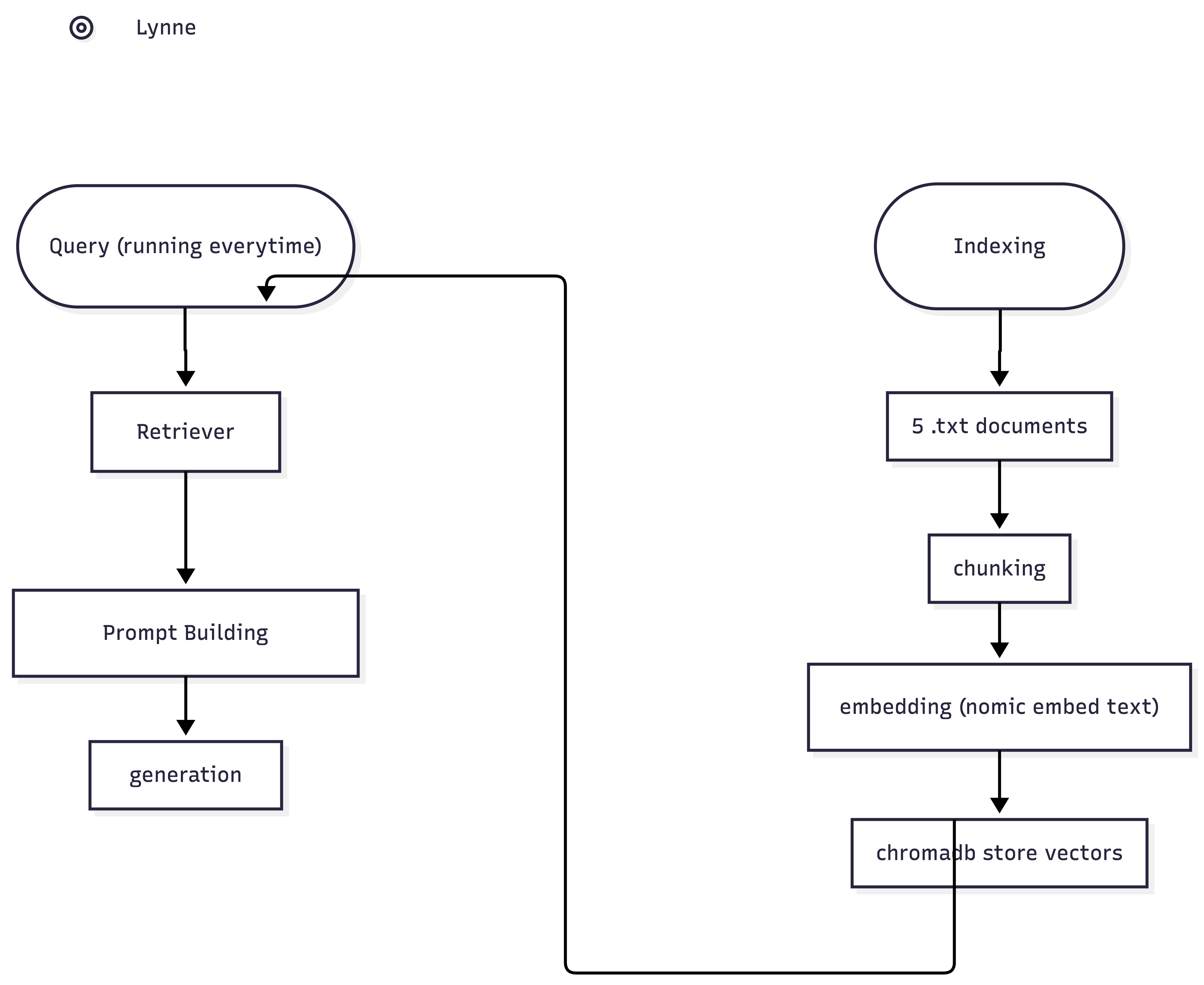

RAG pipeline architecture
